Quest Carbon Cycles

XCR - SE

Name: XCR - SE
Brand: Quest Carbon Cycles
Price: 9600.0 CAD
Availability: InStock

$9,600.00 CAD

Sale Sold out

Frame Size S M L

Color Red

Product variants

Quantity

Ride to Win.

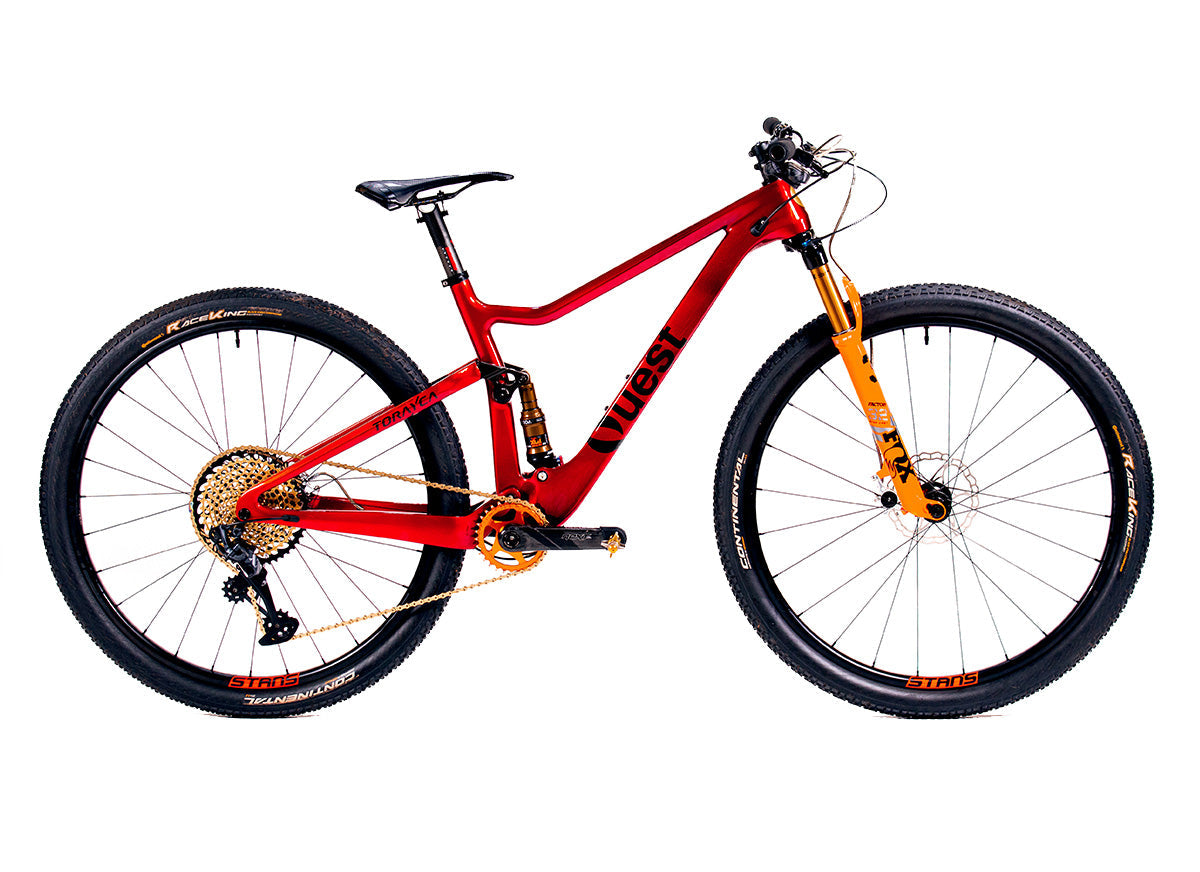

The XCR SE is the ultimate in carbon engineering. With its exceptional geometry, 100mm of travel, and a dash of special Quest sauce. Be faster than ever before, between the tape, or on local singletrack. The world is your racetrack, Quest is giving you the tools to win!

Weight

20lbs/9.07kg

Font / rear travel

100mm

Wheel size

29"

Material

Toray Carbon

Ultra light. Ultra fast.

The XCR SE features the Fox Factory 32, weighing in at 2.98 pounds, making this fork the lightest cross-country fork ever. Optimized for 100 mm of travel, the Step-Cast lower leg design and narrow crown spacing save weight while the 32 mm upper tubes maintain FOX ride quality.

Climbing, Enhanced.

With an integrated remote lockout, you’ll be climbing like a mountain goat at the flick of a switch. Maximize traction when you need it the most. Fox Factory EVOL with dual piston valve improves rebound and compression flow for more consistent performance.

Taste of Elite.

SRAM’s XX1 Eagle AXS mountain bike groupset is the brand’s most luxurious, lightest drivetrain developed on the cross-country racetrack. SRAM AXS doesn't let you make mistakes, and the shifting offers perfect, metronome-like consistency. Every. Single. Time.

Components

SRAM Eagle AXS X01 / XX1

You never knew you needed this, until now. The SRAM Eagle AXS groupset can be described using just one simple word: easy. Imagine your impossible climb, and all that stands between you and conquering that hill is a slight touch of the button in the heat of the moment. Gone are the days of physically overcoming the friction, resistance, and tension of the drivetrain and cables. Shift under load, over the roughest terrain, uphill, and without changing your grip on the bar.

XCR Race face carbon wheels

Raceface considers these wheels rough and rowdy, but Quest wants to add robust and strong, like our riders. Made to be ridden hard, an optimized unidirectional layup makes this wheelset fast and capable of weathering any XC or trail abuse you can serve up.

Fox Factory 32 100mm

The all -new 32 Step-Cast Factory is designed from the ground up to deliver uncompromising XC race performance. With the same legendary suppleness and longevity, the EVOL air spring in 32’s now has an enlarged negative air spring to assist with mid-stroke support.

Specs


Handlebar	Raceface Turbine
Grip	Chromag Format
Headset Spacer	Chromag Black
Stem	Raceface Turbine 31.8 mm
Forks	Fox 32Factory 100 mm Kashima
Rear Shock	Fox Float DPS 6.5x1.5 Kashima
Remote Lockout	2 Position Dual Pull
Dropper Post	Fox Transfer 100 mm Kashima
	Fox Transfer 125 mm Kashima
	Fox Transfer 150 mm Kashima
Dropper Lever	Fox Transfer
Saddle	Chromag Trailmaster Black
Front Wheel	Raceface Turbine 29
Rear Wheel XD	Raceface Turbine 29


Tires	Maxxis Agressor 29x2.3
	Schwable 29x2.3
Crankset	Race Face Next 170/175mm
Bottom Bracket	Sram SuperBoost+
Cassette	Sram X01 10-52T
Derailleur	Sram X01 12 spd
Shifter	Sram Eagle AXS 12 spd
Shifter/Derailleur Kit	Sram XX1 Eagle AXS 12 spd
Battery	eTap AXS X01
Battery Charger	eTap AXS X01
Brakes Front	Sram G2 Ultimate 4 piston
Brakes Rear	Sram G2 Ultimate 4 piston
Rotors Front	Sram 160 mm
Rotors Rear	Sram 160 mm
Chain	Sram X01 Eagle 12 spd

XCR Geometry

	S	M	L
A. Seat post insert length	150mm	180mm	210mm
B. Reach	393.2mm	424.2mm	454.2mm
C. Top tube length, horizontal	567mm	600mm	630mm
D. Stack	604.1mm	598.3mm	607.6mm
E. Wheelbase	1133.5mm	1166.5mm	1196.5mm
F. Chainstay length	443mm	443mm	443mm
G. Front center	688.6mm	721.6mm	751.6mm
H. Bb drop	42mm	42mm	42mm
I. Bb height	339mm	339mm	339mm
J. Seat tube angle	73°	73°	73°
K. Head tube angle	67°	67°	67°
L. Seat tube length	410mm	440mm	490mm
M. Head tube length	95mm	95mm	105mm
N. Bike stand over height (29“*2.35”)	710mm	733.5mm	756mm
