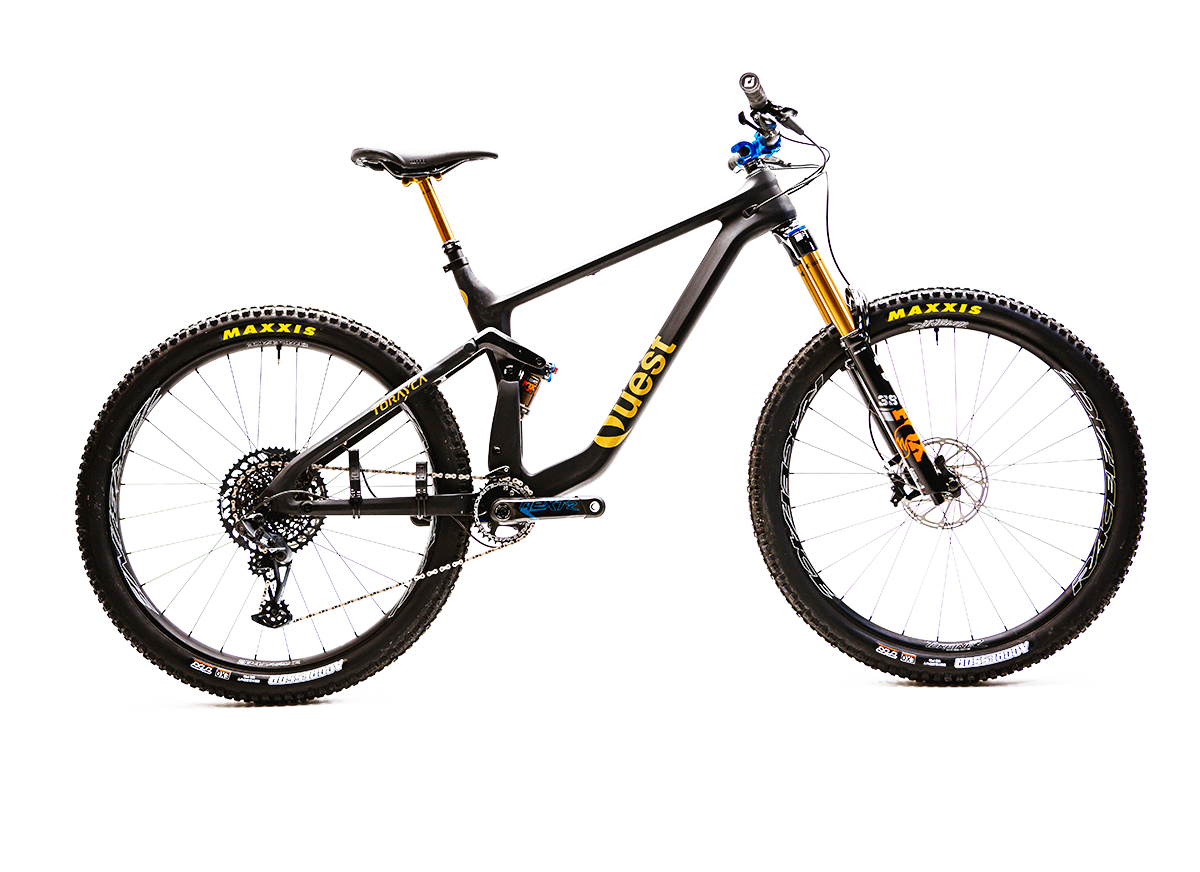

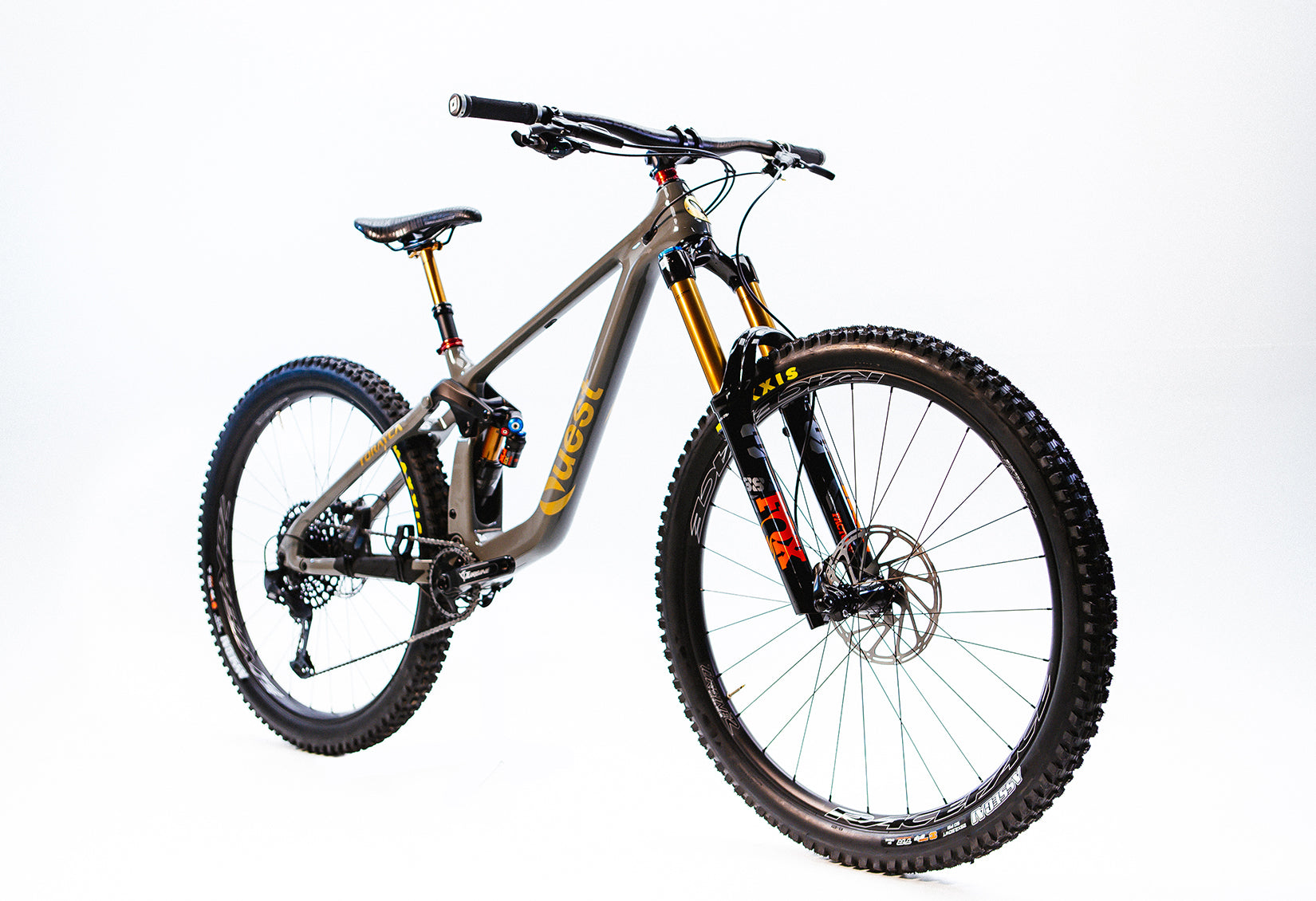

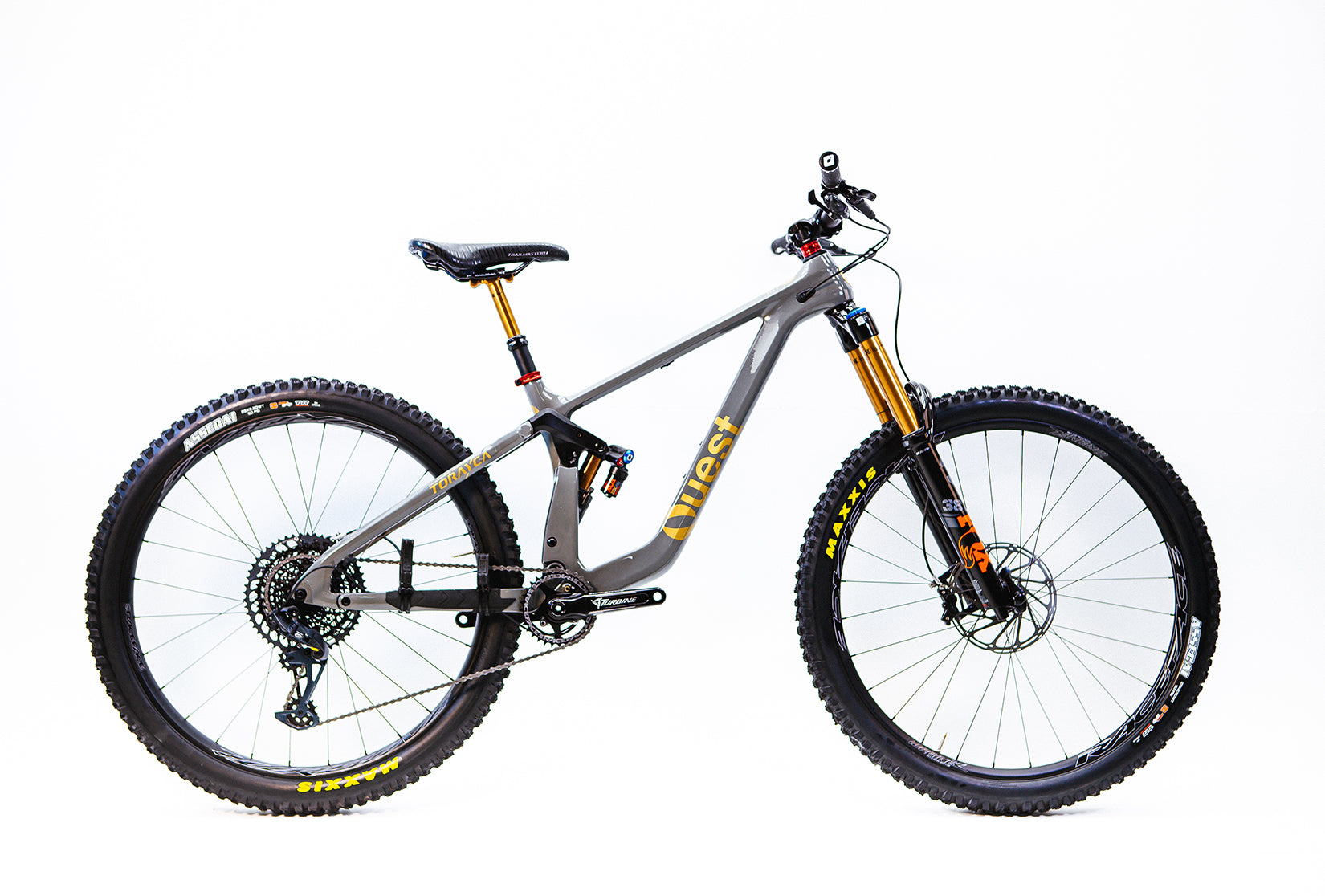

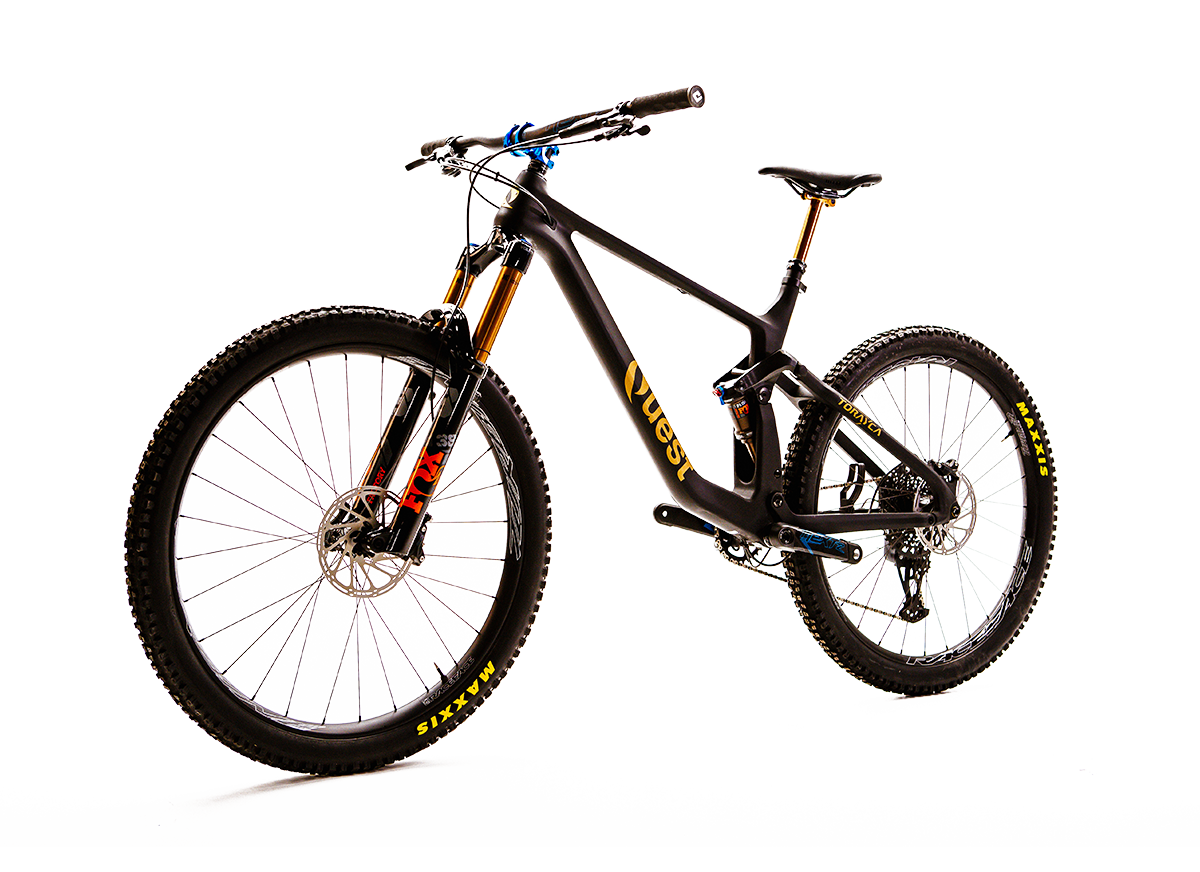

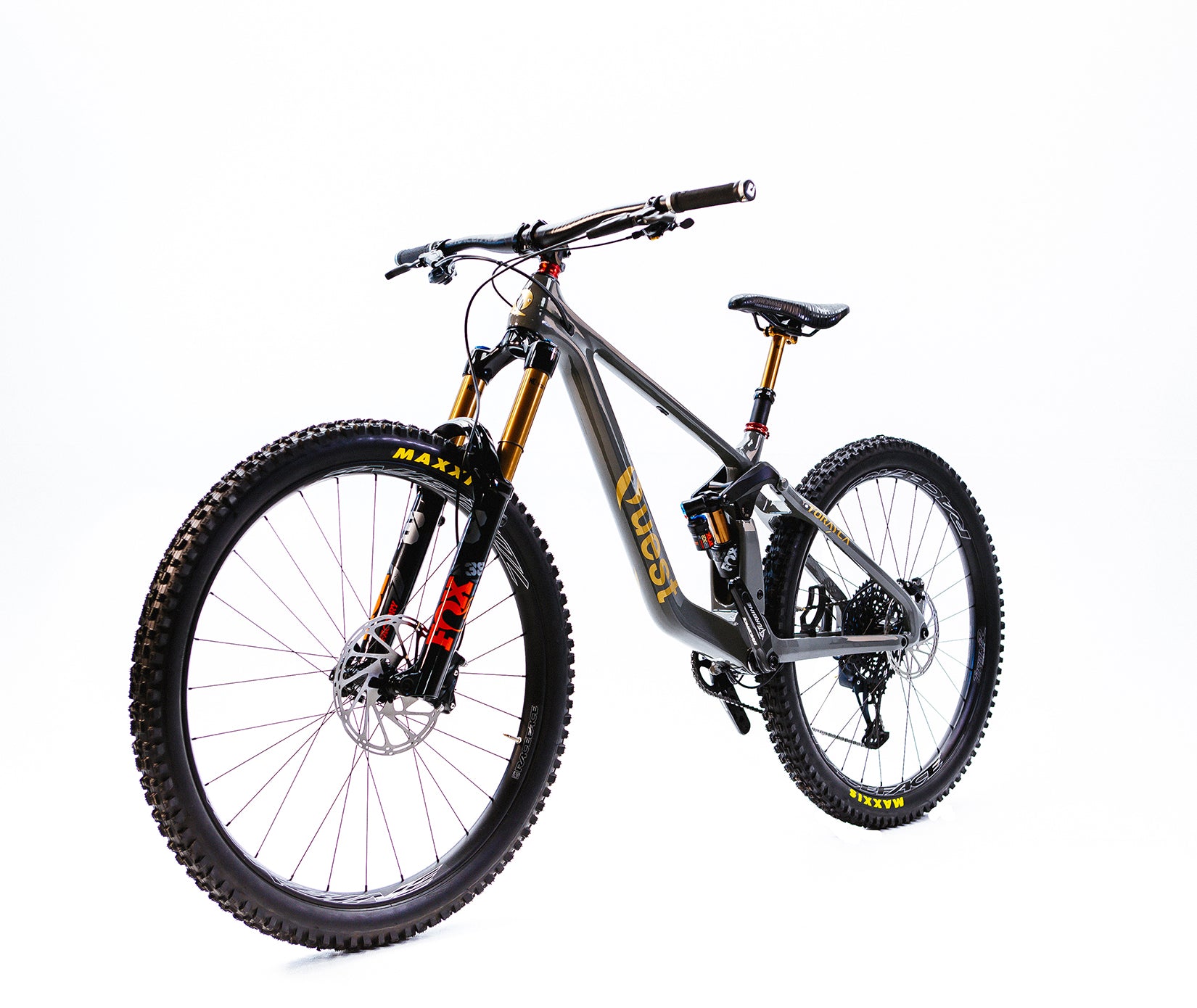

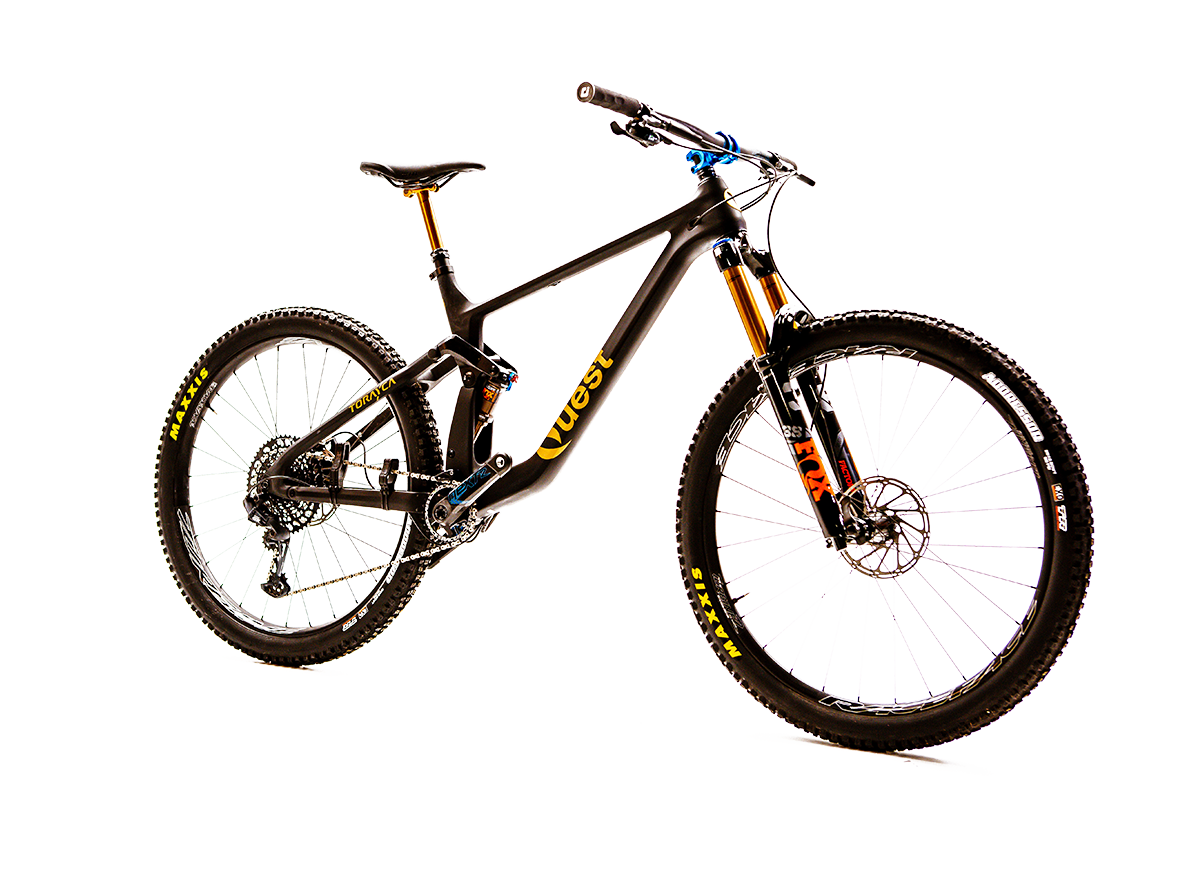

Havoc - GX
And there’s no better way than with the Quest Havoc. This perfectly designed bike is ready to take you for the wildest ride of your life. Fast, and fun, while remaining soft and planted on punchy climbs. This bike loves to wreak havoc at the park, and on the gnarliest enduro stages you can find.
Seat Tube: 77°
Crush with Style.
To accommodate 160/170mm of travel, the Quest Havoc benefits from a 64.9-degree head angle. This allows for high-speeds and incredible stability on the steepest, loosest trails. Combined with a steep seat tube angle you won’t waste a single watt. Havoc gives you climbing efficiency and traction along with plush, downhill-crushing goodness.
Light. Tough. Fast.
This Quest is crafted using the latest one-piece latex 3D mandrel and molding technology. This technology truly maximizes the strength of carbon fibre. The Havoc is designed to be light enough for you to pedal, fast enough for you to enjoy, and tough enough to endure!
Partner with the Best.
GX is your partner for all rides, all the time, all day. Long days, quick rides, and everything in-between. GX is the shifting ecosystem at its best. With the all-new 520% range, all-new colourways, and seamless compatibility with the rest of the ecosystem, GX is there to maximize your ride experience.
COVID supply chain challenges may result in parts substitutions.
|Seat Post Clamp||Chromag Black - Red|
|Headset Spacer||Chromag Black - Red|
|Forks||Fox 38 Factory 160 mm Kashima|
| ||Fox 38 Factory 170 mm Kashima|
|Rear Shock||Fox Float X 155 mm Kashima|
| ||Fox Float DPS 155 mm Kashima|
|Fox Float DPS 155 mm Performance|
|Dropper Post||Fox Transfer 100 mm Kashima|
| ||Fox Transfer 125 mm Kashima|
|Fox Transfer 150 mm Kashima|
|Dropper Lever||Fox Transfer|
|Saddle||Chromag Trailmaster Black|
| ||Chromag Trailmaster Brown|
|Front Wheel||Raceface Turbine 29|
|Rear Wheel XD||Raceface Turbine 29|
|Tires Front||Maxxis Assegai 29|
|Tires Rear||Maxxis Agressor DD 29|
|Crankset||Sram GX 165 mm|
|Bottom Brackett||Sram SuperBoost+|
|Chain Stay Protector||STFU|
|Cassette||Sram GX 10-52T|
|Derailleur||Sram GX 12 spd|
|Shifter||Sram GX 12 Spd|
|Brakes Front||Sram G2 RSC 4 piston|
|Brakes Rear||Sram G2 RSC 4 piston|
|Rotors Front||Sram 200 mm|
|Rotors Rear||Sram 180 mm|
|Chain||Sram GX Eagle 12 speed|
|Seat post insert length||135mm||170mm||200mm|
|Top tube length, horizontal||600mm||630mm||650mm|
|Seat tube angle||77°||77°||77°|
|Head tube angle||65°||65°||65°|
|Seat tube length||410mm||445mm||485mm|
|Head tube length||95mm||100mm||110mm|
|Bike stand over height (29“*2.6”)||750.8mm||777.6mm||786.7mm|
|Fork length, full||571mm||571mm||571mm|
