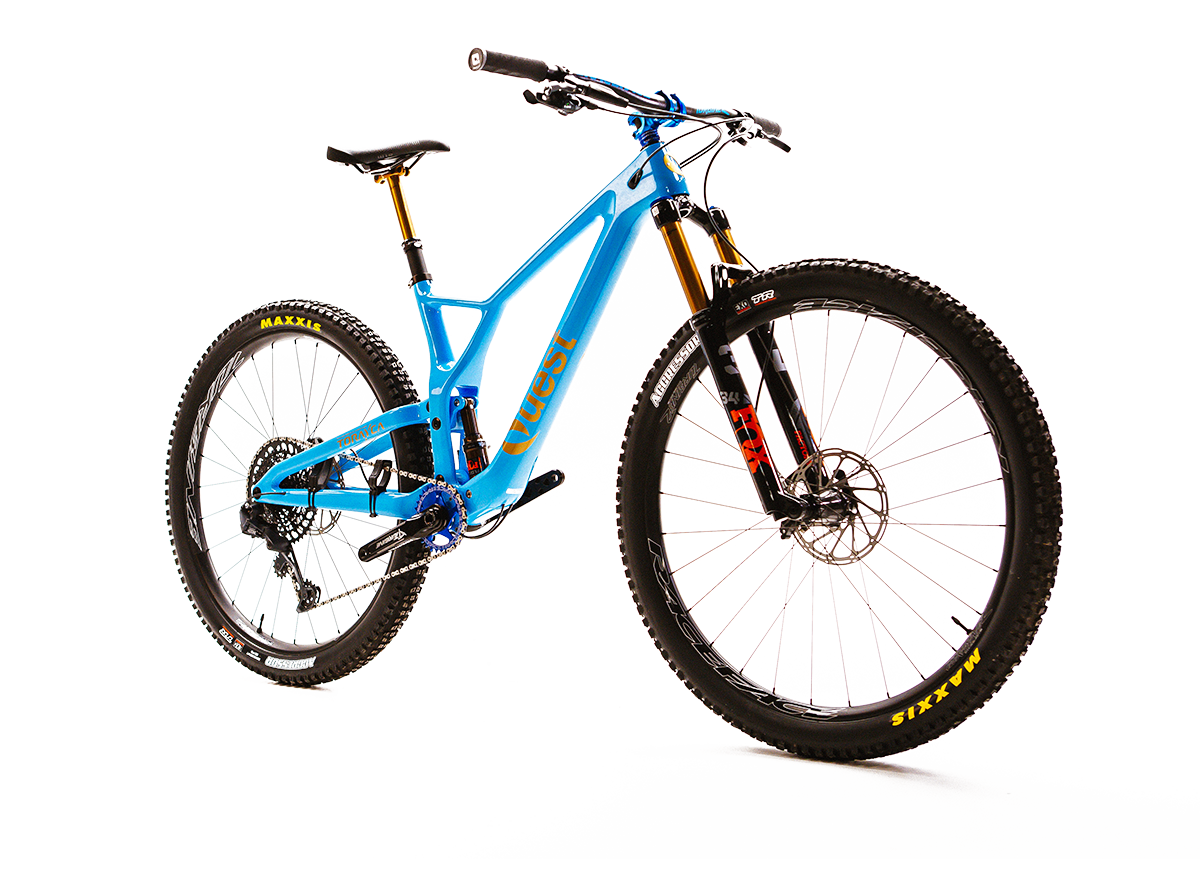

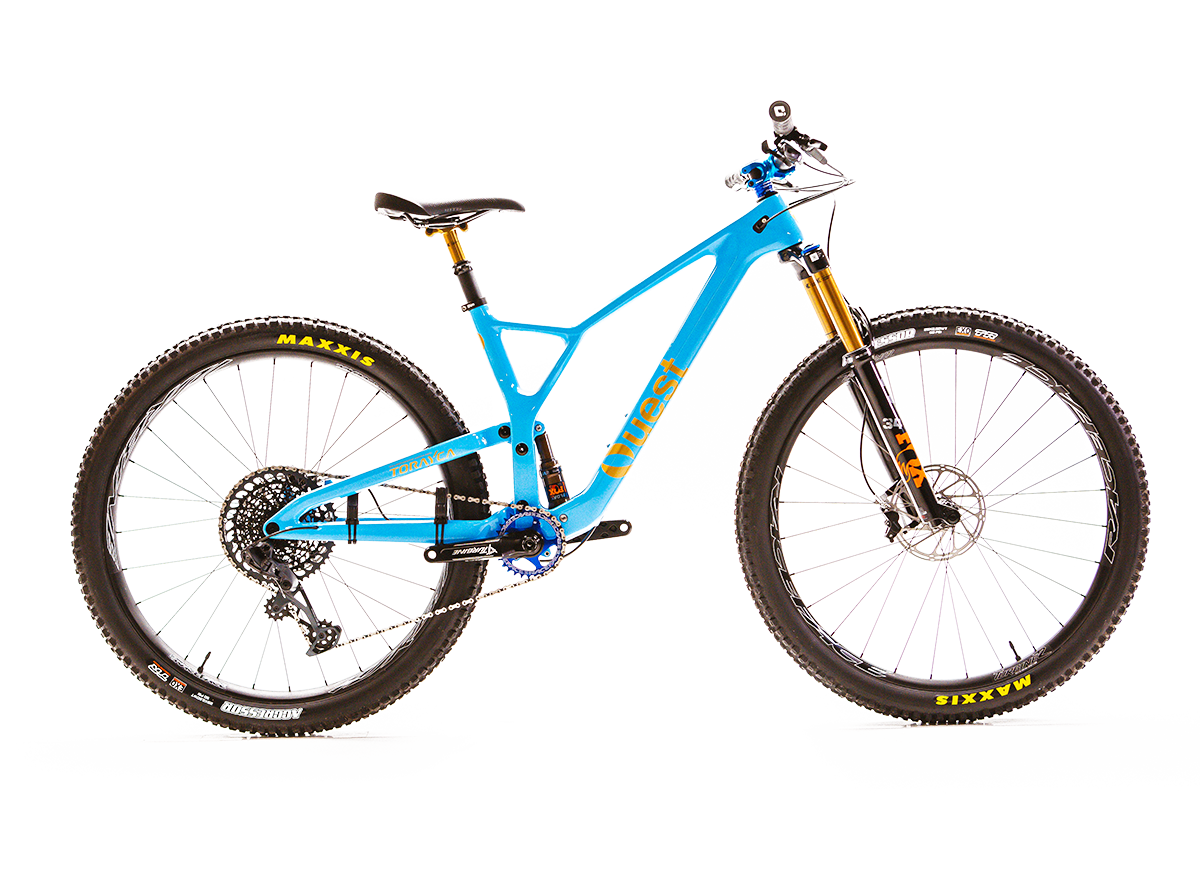

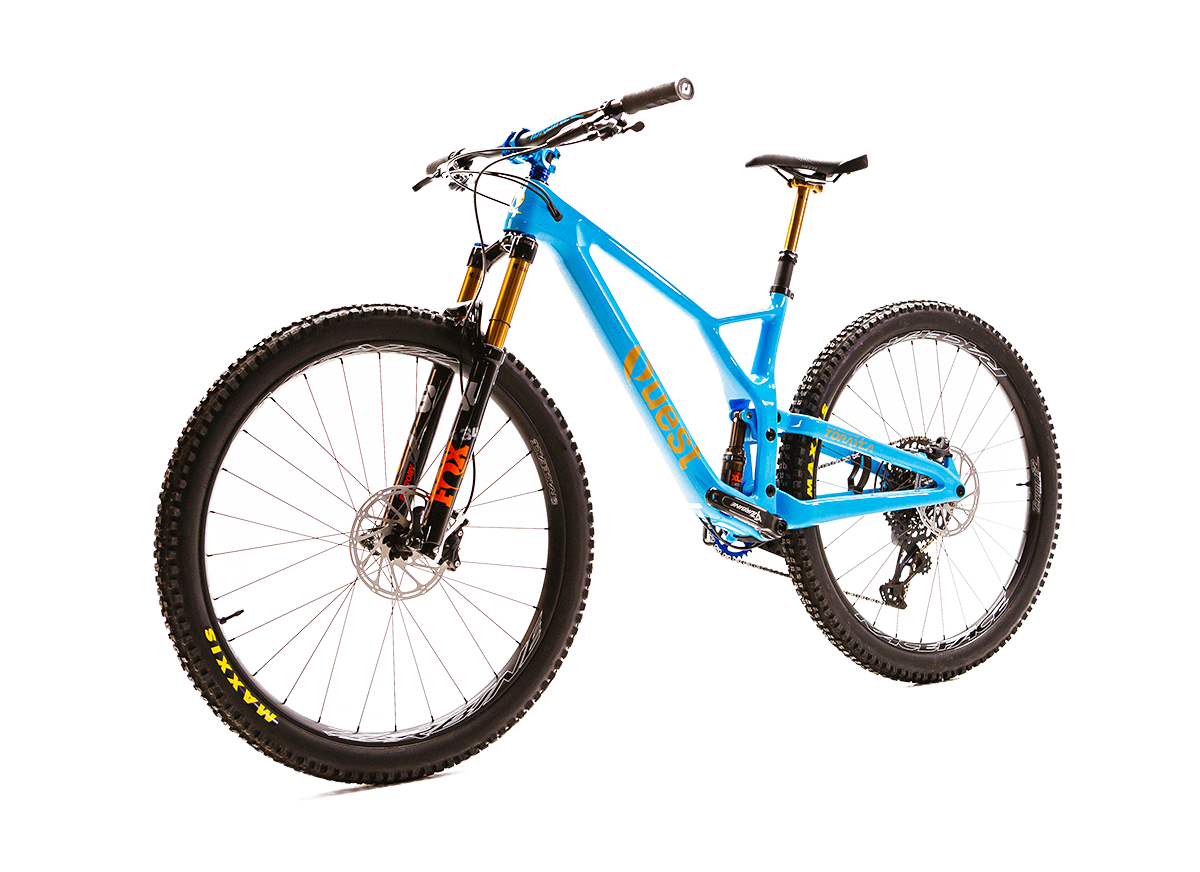

Karst - SE
Balanced, Efficient, Fast.
If your Quest is All-Mountain confidence, incredible descending capability, and a bike capable of tackling technical singletrack, Karst is the bike for you. The floating-pivot suspension provides adept, sure-footed climbing, and efficient pedaling so you can reward yourself with an all-out ride down. Be confident on the up’s, the down’s, and everything in-between.
Front Fork Travel
Plush, Nimble, Refined.
With 140mm travel up front, and 130mm in the rear, the Karst is the most aggressive all-mountain bike on the market. It is exceptional, refined, and capable. The perfect “down country” addition to your fleet.
Light. Balanced. Progressive.
The Karst’s balanced geometry and progressive, floating-pivot suspension provides exceptional performance while climbing, increasing traction on the most difficult terrain.
Taste of Elite.
SRAM’s XX1 Eagle AXS mountain bike groupset is the brand’s most luxurious, lightest drivetrain developed on the cross-country racetrack. SRAM AXS doesn't let you make mistakes, and the shifting offers perfect, metronome-like consistency. Every. Single. Time.
|Handlebar||RaceFace Next R|
|Headset Spacer||Chromag Black|
|Stem||Raceface Turbine 35 mm Black|
|Forks||Fox 34 Factory 140 mm Kashima|
|Rear Shock||Fox Float DPS 165x45 Kashima|
|Dropper Post||Fox Transfer 100 mm Kashima|
|Fox Transfer 125 mm Kashima|
|Fox Transfer 150 mm Kashima|
|Dropper Lever||Fox Transfer|
|Saddle||Chromag Trailmaster Black|
|Chromag Trailmaster Brown|
|Front Wheel||RaceFace Next R 29|
|Rear Wheel XD||RaceFace Next R 29|
|Tires Front||Maxxis Assegai 29|
|Tires Rear||Maxxis Agressor DD 29|
|Tires||Maxxis Minion 29 Tan wall|
|Crankset||Sram GX 165 m|
|Bottom Bracket||Sram SuperBoost+|
|Chain Stay Protector||STFU Trail|
|Cassette||Sram X01 10-52T|
|Derailleur||Sram X01 12 spd|
|Shifter||Sram Eagle AXS 12 spd|
|Shifter/Derailleur Kit||Sram Eagle AXS 12 spd|
|Battery||eTap AXS X01|
|Battery Charger||eTap AXS X01|
|Brakes Front||Sram G2 Ultimate 4 piston|
|Brakes Rear||Sram G2 Ultimate 4 piston|
|Rotors Front||Sram 180 mm|
|Rotors Rear||Sram 180 mm|
|Chain||Sram X01 Eagle 12 Spd|
|A. Seat post insert length||170mm||200mm||230mm|
|C. Top tube length, horizontal||590mm||623mm||658mm|
|F. Chainstay length||444.5mm||444.5mm||444.5mm|
|G. Front center||736mm||772mm||807mm|
|H. Bb drop||36mm||36mm||36mm|
|I. Bb height||339mm||339mm||339mm|
|J. Seat tube angle||76°°||76°°||76°°|
|K. Head tube angle||67°||67°||67°|
|L. Seat tube length||440mm||480mm||520mm|
|M. Head tube length||95mm||110mm||125mm|
|N. Bike stand over height (29“*2.35”)||731.4mm||732.8mm||735.9mm|
